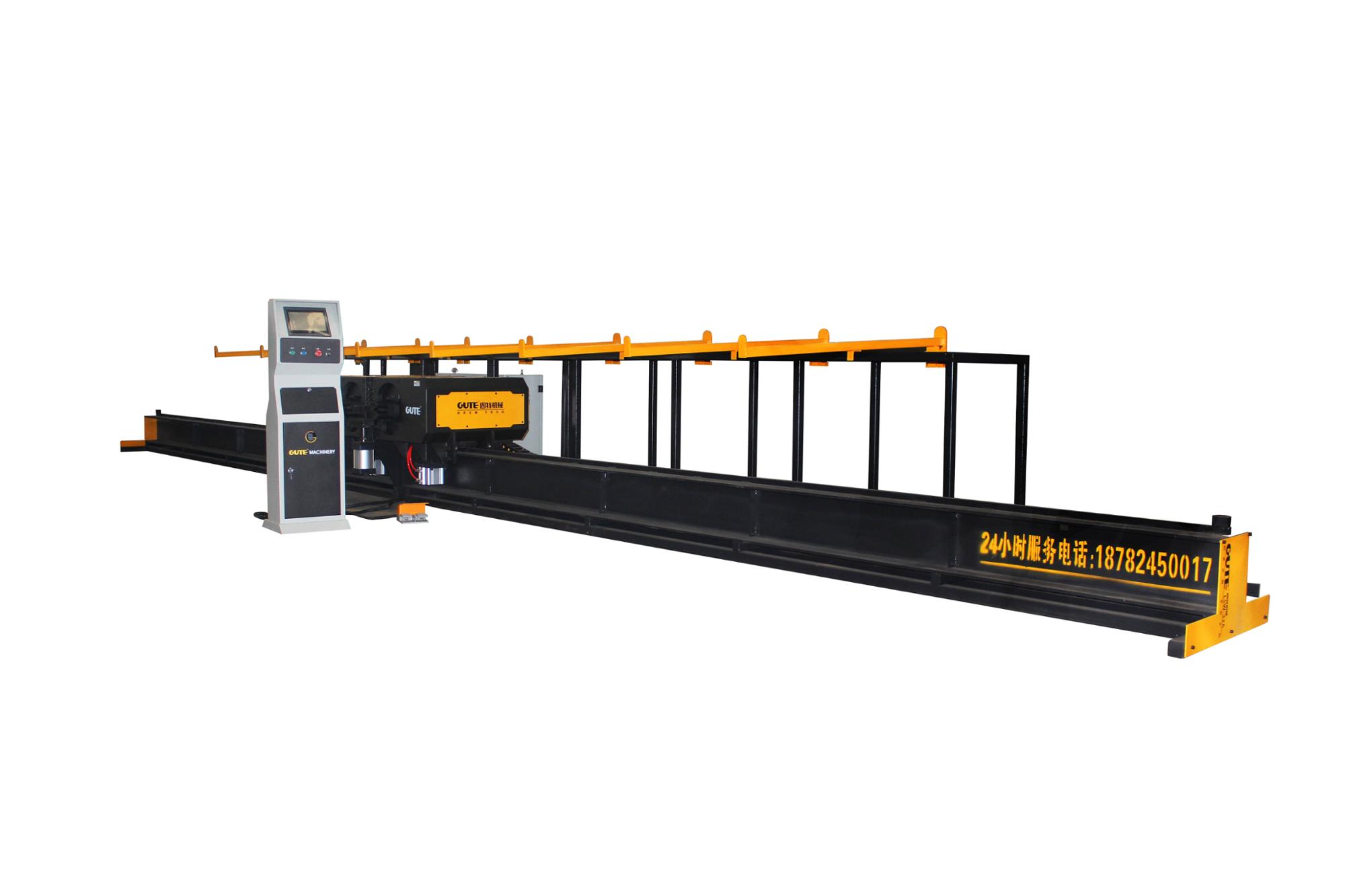

LSW-32A steel rebar double head bending center Cnc Deformed Rebar Bending Center
Product Description
Product Description
1. The servo motor controlled by PLC, with input graphic function, easy operation, high effiency.
2. The electric parts adopts the internatioal famous enterprise, running steadily and high quality assurance.
3. With a storage of 100 kinds of shapes, just need debug the system when processing, all angle could be done
4. Only pick out the shape when processing, edit the data, low requirement of the operator, and the operation interface was humanization.
Technical Parameters
| Rated power | 16kw | Max. bending speed | 72º/sec | |||||||
| Air pressure | 0.8Mpa | Weight | 3.8T | |||||||
| Max. bending angle | -120º | L*W*H | 12000*2000*1400 mm | |||||||
| +180º | ||||||||||
| Max. length of stirrup side | 10m | Electric consumption | 5kw/h | |||||||
| Min. bending side length | 800 mm | Steel bar diameter | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 |
| Bending head moving speed | 0.5-2m/sec | Bending quality | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 1 |
