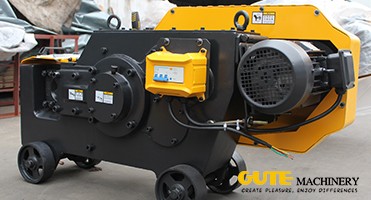

220V/380V/3 phases/single phase 6-36mm Steel Bar Rebar Cutter Factory Construction Industry Use high quality

Product Description

Product DescriptionProduct Introduction- GQ40A adopts SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment and 12mm thick external case to ensure reliable performances also under heavy loads and long working life.
- Thick and durable BLADES (4 edges) to ensure accurate cutting with all kinds of steel bar.
- CE Certificated dust proof MOTOR with aluminium shell.
- CE Certification (2006/42/EC - 2006/95/EC).
GQ 40A Technical Parameters
Cutting Capacity
6-36 mm (intensity≤450N/mm²)
Flat Steel Cutting
32*32mm
Motor Type
Y100L-2
Motor Power
3KW-2P
Motor Rotation Speed
2880 r/min
Continuous Cutting Times
32 n/min
Noise
≤80 db(A)
Oil Volume
7L
Machine Size
1280*460*700 mm
Wheight
400 KG
Blade Size
83*83*26 mm
Angle Belt Type
1600B
Main Features1) Solid box, correct use, life-long warranty2) Polymer fiber material, durable and dielectric.3) High quality motor with famous brand, solid steel box, removable wheels.4) National standard motor, 400 KG total weight, solid forged high quality head, much lower       noise, super durable than regular type of machine.Detailed ImagesGear BoxName: Main Gear BoxMaterial: Cast Iron Original: ChinaAll Gear was made by Cast Iron, double service life than regular type Steel Bar Cutter, all gear have 1 year warranty. Connection RodName: Connection Rod
Material: C45 (forged steel )
Original:  China
Durable C45 steel with ergonomics design, easy to handle by single worker, protect worker form accident injure.
Durable BladeName: Blade
Material: C45 (forged steel)
Original: China
T10 (tool steel) made blade, double service life with protect shell, always keep the worker in safe working condition.High Quality MotorType: Y100L-2
Original: China
Top 10 Chinese brand motor, voltage switchable from 220-440V or 220-380V, coming with 1 year warranty.
Production LineCertificationsPacking & Delivery
Packaging
Size
990 (L) * 890 (W) * 890 (D)
Weight
0.33 T



Packaging Details
The normal package is wooden box(Size: 990*890*890).If need Iron bar box. Please inform before delivery.If container is too tigher.
Delivery
Size
990 (L) * 890 (W) * 890 (D)
Weight
0.33T



Delivery Details
The normal package is wooden box(Size: 990*890*890).If need Iron bar box. Please inform before delivery.If container is too tigher.
Our CompanyGlobal PartnersFAQ1, Are  you a trading company or manufacturer?-we are the Chinese leading manufacturer of steel bar processing machine.
2.What is the Voltage/phase of this GQ40A steel bar cutter?-220V 50Hz/single phase ,380V 50Hz/three phase, we can also customize as the customer need.
3.Can you make the logo or company name on the products or package?-Sure we can, customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
4. How to choose a model?- First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.

Contact us if you need more details on Steel Bar Cutter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 220v/380v Single Phase 3 Phases High Quality Factory Construction Industry Use、6-36 Mm Steel Bar Cutter Low Noisy. If these products fail to match your need, please contact us and we would like to provide relevant information.
